TinyDuino Shields

By Control House

Products for a sweet little Arduino compatable microprocessor



Prototype shield

This prototype shield attaches to the TinyDuino using the Tiny Circuits terminal shield.

Features

All I/O pins from the TinyDuino are available on this board. Holes adjacent to the header pins are tied to the microprocessor. That leaves 72 holes for your use as a prototype area. The stacking of boards allows enough room so that components may be mounted on the top or bottom of the circuit board.

·    Small size just slightly larger than the TinyDuino terminal shield. Actual size - 1.2"H x 1.365"W

·    Saves time develping circuits

·    Through hole technology

·    Holes located on .100 centers

·    All holes are .040 in diameter making the connection of most devices possible

·    These shields may be stacked if you use female headers

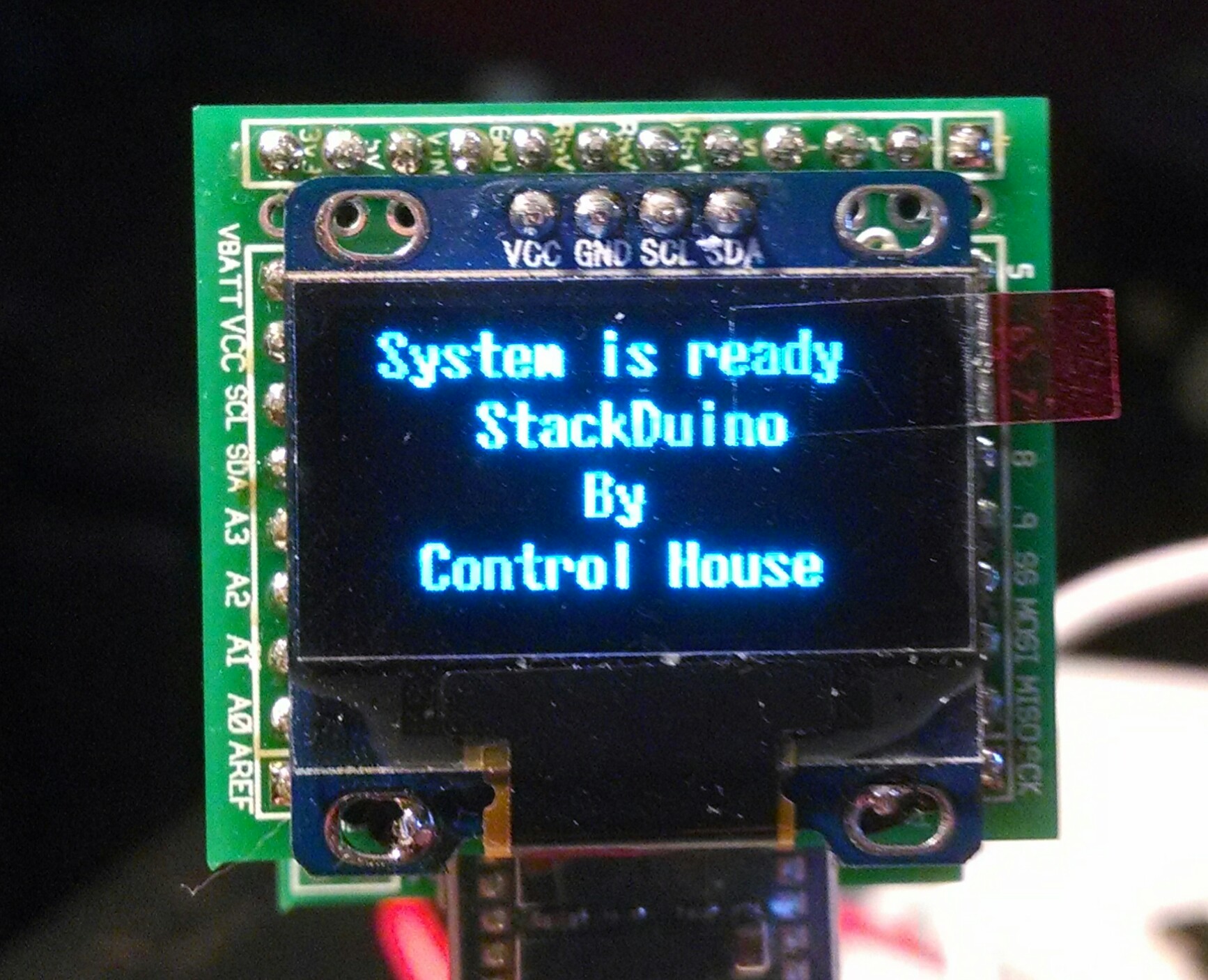

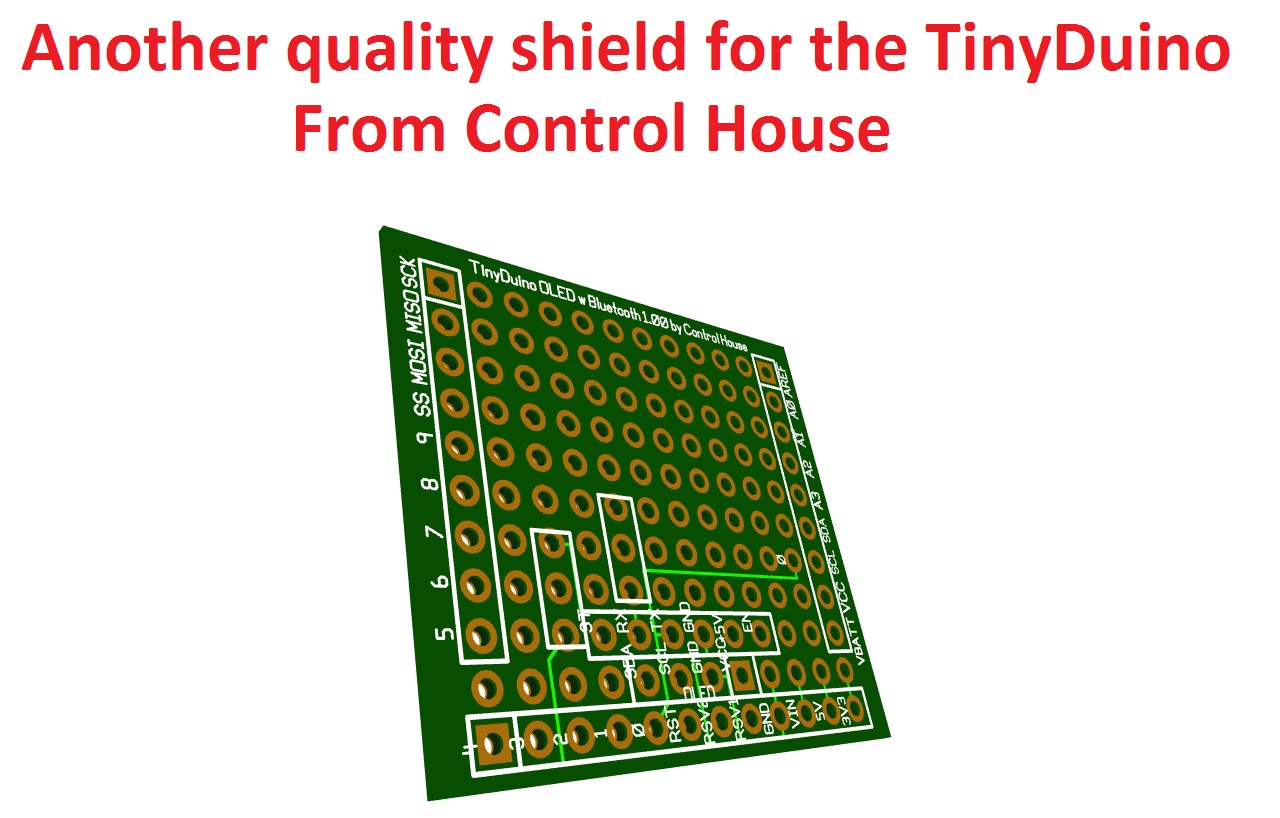

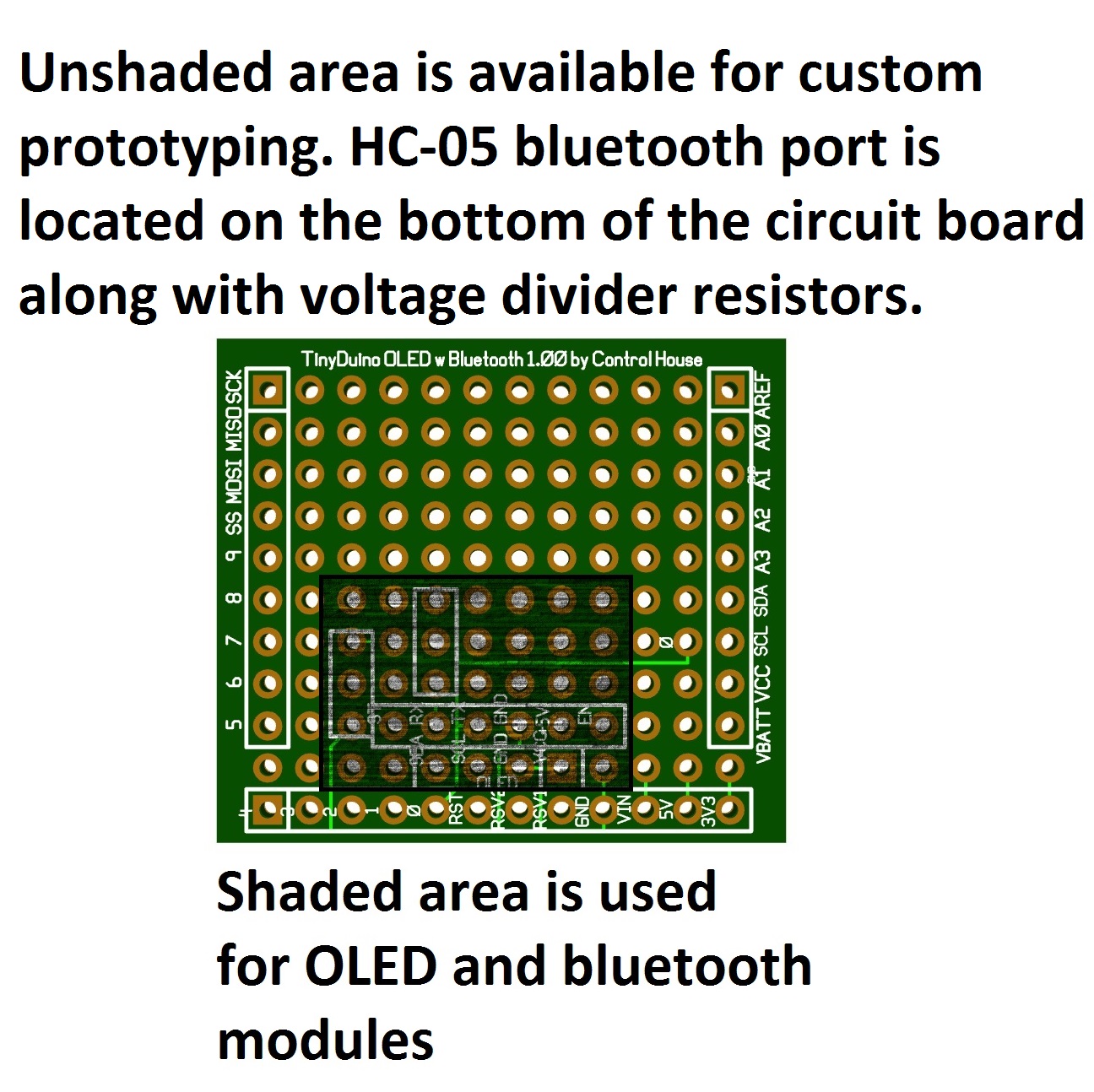

TinyDuino OLED/HC-05 Bluetooth/Prototype Shield

This prototype shield attaches to the TinyDuino using the Tiny Circuits terminal shield.

Features

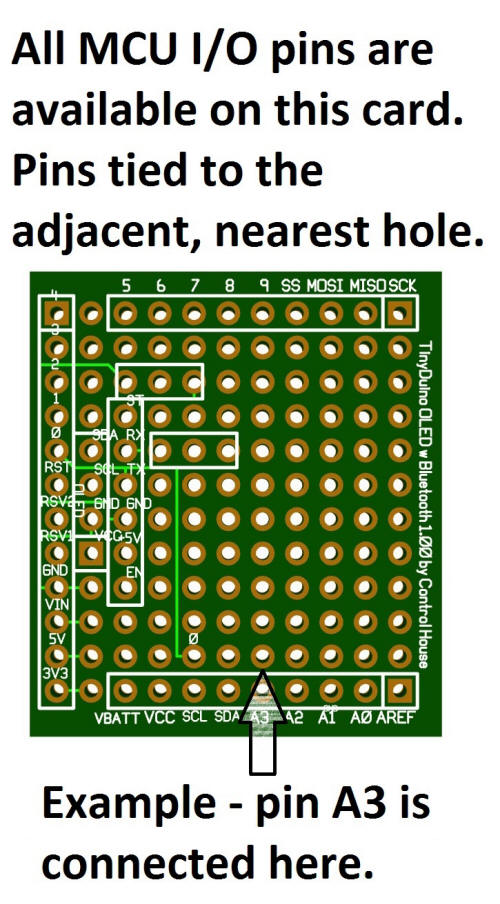

All I/O pins from the TinyDuino are available on this board. Holes adjacent to the header pins are tied to the microprocessor. 12 holese are reserved for the use of a .96" OLED display, HC-05 Bluetooth transceiver module, and it's required voltage divider circuit. The port for the bluetooth module is located on the bottom of the shield. That leaves 60 holes for your use as a prototype area. The stacking of boards allows enough room so that components may be mounted on the top or bottom of the circuit board.

·    Small size just slightly larger than the TinyDuino terminal shield. Actual size - 1.2"H x 1.365"W

·    Saves time develping circuits. In a short time you can develop a project that communicates and displays information or data. Truly plug and play

·    Through hole technology

·    Holes located on .100 centers

·    All holes are .040 in diameter making the connection of most devices possible

·    With the OLED installed, this board should be the top shield on the stack

·    Pins A4 & A5 are reserved for the I2C OLED display. Pins 0 & 1 are used for the serial connection to the bluetooth module

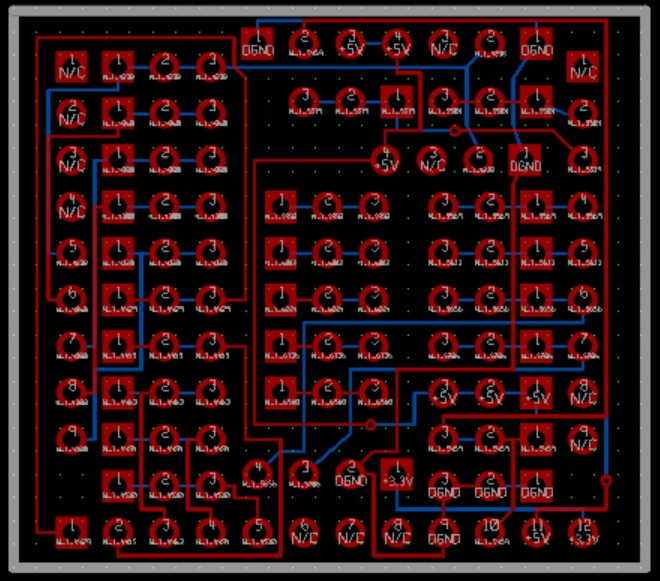

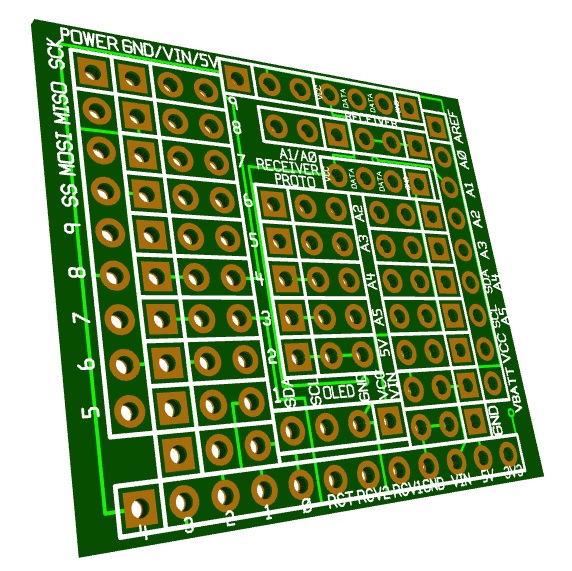

TinyDuino OLED/433mHZ RF Link Receiver/Prototype Shield

This prototype shield attaches to the TinyDuino using the Tiny Circuits terminal shield.



Features

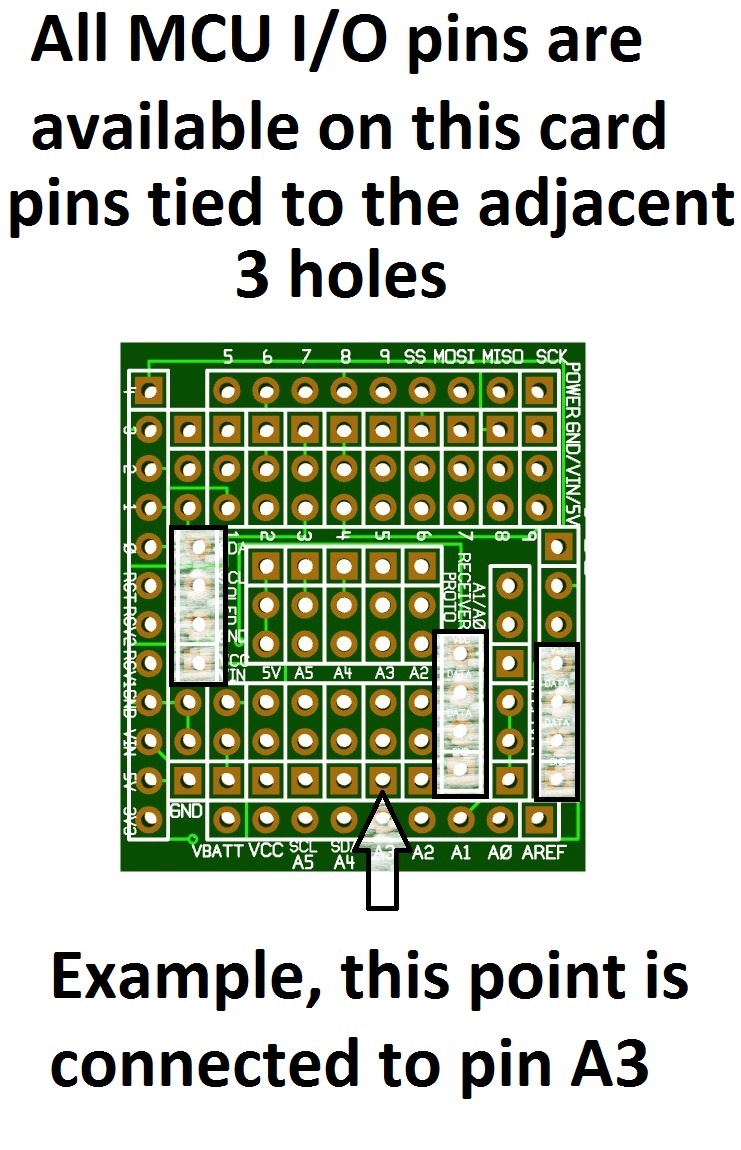

All I/O pins from the TinyDuino are available on this board. 12 holese are reserved for the use of a .96" OLED display, and a 433mHz FM Link receiver module. The port for the FM receiver module can be located on the bottom of the shield in either of two posistions. A number of holes remain for your use as a prototype area. The stacking of boards allows enough room so that components may be mounted on the top or bottom of the circuit board.

·    Small size just slightly larger than the TinyDuino terminal shield. Actual size - 1.2"H x 1.365"W

·    Saves time develping circuits. In a short time you can develop a project that communicates and displays information or data. Truly plug and play

·    Through hole technology

·    Holes located on .100 centers

·    All holes are .040 in diameter making the connection of most devices possible

·    With the OLED installed, this board should be the top shield on the stack

·    Pins A4 & A5 are reserved for the I2C OLED display. Pin 9 is used for data pin of the FM receiver.



Here is an example of this board in use

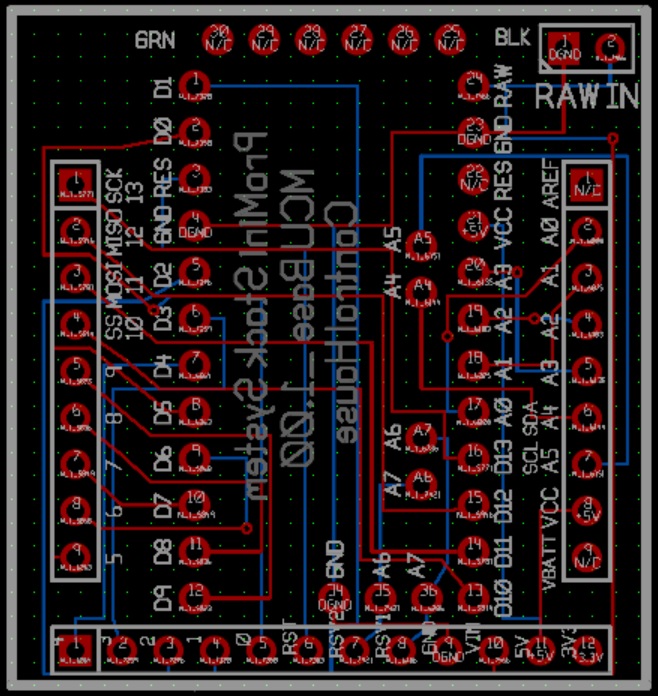

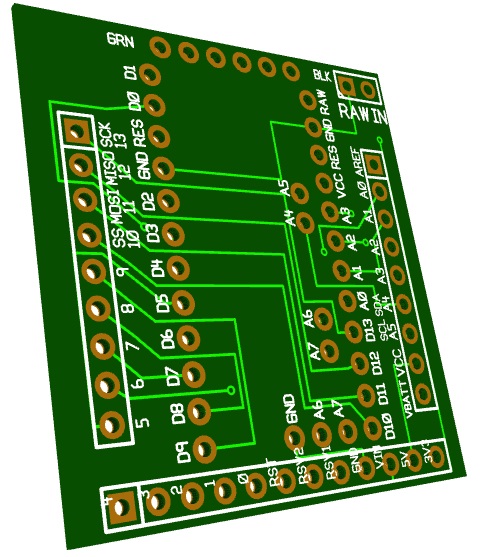

ProMini Stack System Base_1.00

This Pro Mini board attaches to the TinyDuino shields shown on this page - in case you want to use a Pro Mini processor



Features

In case you would rather use a Pro Mini in place of the TinyDuino, this board allows the shields produced by Control House to mount.

·    Small size just .25" taller than the TinyDuino terminal shield. Actual size - 1.45"H x 1.365"W

·    Through hole technology
